11511215 – Toyota JZA80 Supra MKIV Type FV 2 Blow-off Valve Kit [BFV2-112] - atmospheric vent.
11511219 - *Optional Toyota JZA80 Supra MKIV Type FV 2 Blow-off Valve Kit [BFV2-BK-112] - atmospheric vent.
Designed specifically to upgrade the factory ABV for the turbo Toyota Supra (JZA80) chassis with the 2JZ-GTE turbo engine. This GReddy FV2 Blow-off Valve Kit allows for a relocated, open to atmosphere type installation with the factory OEM charge piping. The provided application-specific cast-aluminum GReddy adapter with included outlet horn adapter, hose and cap allow for straight forward mounting and installation. The upgraded adjustable FV2 BOV allows for fine-tuning for a wide range of boost and turbo combinations. It’s a must have upgrade when boosting up and/or upgrading the factory turbocharger.
The GReddy FV2 is the second iteration of our latest generation blow-off valves. The improved design allows two sophisticated features. Without the use of tools, you can now rotate the top of the BOV 360 degrees to best position the vacuum port fitting for your application and the spring stiffness adjustment is now easily and accurately tunable by the use of our detent knob. The unique "Floating Valve" design incorporates a revised adjustable dual spring system, while maintaining the advantages of the previous models' push valve structure and silicone diaphragm control. This original design makes spring pre-load setting less dependent on the idle, while providing better response, increased valve travel, more air-flow and added resistance to premature valve lift under all conditions. Also maintained is a slimmer CNC outlet with discharge ports to draws surrounding air to amplify the blow-off sound, however this can be replaced with optional re-circulation adapters in various sizes. The BOV FV 2 adopts the same mounting and outlet size and position as previous GReddy FV, RZ and RS models, so retro-fitting onto existing applications is possible. All GReddy BOVs are compatible with standard GReddy Blow-off Valve flanges. GReddy Blow Off Valve Type-FV 2
Make: JZA80 (BFV2-122)
Finish: Gloss clear(silver)with blue anodized accent ring
Valve Size: 40mm
Diaphragm: heat and oil resistant rolling diaphragm
Spring: Adjustable dual-action

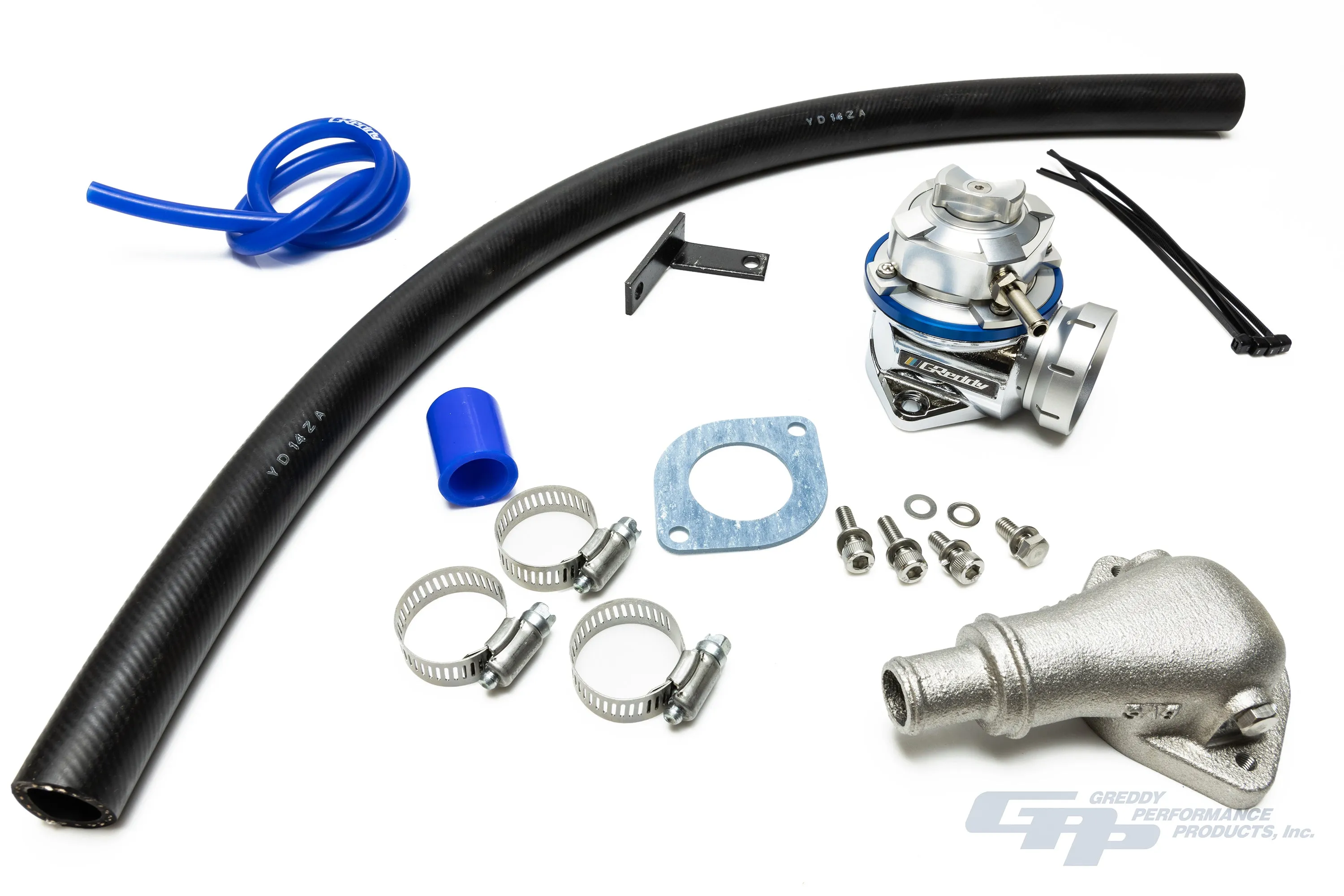

Includes: BOV, Gasket, Nuts & Bolts, Vacuum nipple, hose
*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
